Sunday BLUEPRINT

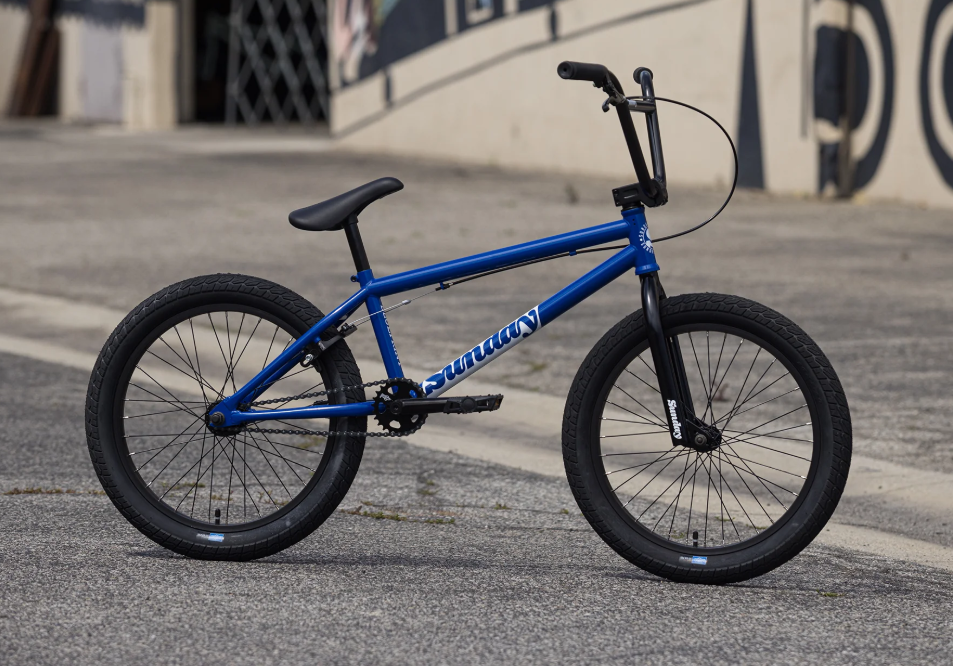

The Sunday Blueprint BMX Bike is designed to be a solid entry-level bike into the exciting world of freestyle BMX. The Blueprint is offered in two different toptube sizes, allowing you to find the bike that fits you just right. The bike has the look and feel of a top-tier BMX bike while being equipped with entry-level components to keep it affordable. With that said, the bike features 3-piece chromoly cranks, Odyssey Springfield Brakes, and an FSA integrated headset, making it a great bang for the buck.

This 20" toptube model is ideal for riders approximately (but not limited to) 5' - 5'4" in height. It is also available in Fire Engine Red, found here.

Sunday offers a 20.5" toptube as well, ideal for riders approximately (but not limited to) 5' 3" - 5' 9" in height. It is available here in Battleship Grey and here in Gloss White.


Specifications:
Frame: Sunday Blueprint, high-tensile steel, integrated headtube
Fork: Sunday Blueprint, high-tensile steel, 2-piece steerer tube, welded preload
Bars: Sunday, high-tensile steel, 2-piece (28.5" Width) (9" Rise) (12° Backsweep) (4° Upsweep)
Stem: Sunday Freeze front load (48mm)
Headset: FSA Integrated (1-1/8")
Grips: Sunday Cornerstone
Cranks: 3-Piece, chromoly (160mm Length)
Bottom Bracket: American, unsealed (19mm)
Pedals: Wellgo platform, plastic
Sprocket: Sunday Sabertooth v2, steel (25T)
Chain: KMC S1
Front Hub: Sunday low-flange, unsealed (3/8" Axle)
Rear Hub: Sunday cassette (14mm Axle)
Driver: 9 Tooth
Front Rim: P-7X, aluminum (20") (36 Hole)
Rear Rim: P-7X, aluminum (20") (36 Hole)
Front Tire: Sunday Current (20 x 2.4")
Rear Tire: Sunday Current (20 x 2.4")
Seat: Sunday Badge (Combo)
Seat Post: Combo (25.4mm)
Seat Clamp: Integrated
Brake Lever: Aluminum
Brakes: Odyssey Springfield U-Brake
Gyro: -
Gyro Tabs: Drilled
Brake Mounts: Welded
Extras: Odyssey Quik Slic brake cable
Color: Sunday Blue
Weight: 26 lbs
Geometry:
Toptube Length: 20"
Chainstay Length: 13.2" - 13.5"
Headtube Angle: 75°
Seattube Angle: 71°
Bottom Bracket Height: 11.5"
Standover: 8.75"
Sizing Guideline: 5' - 5'4" Rider Height
